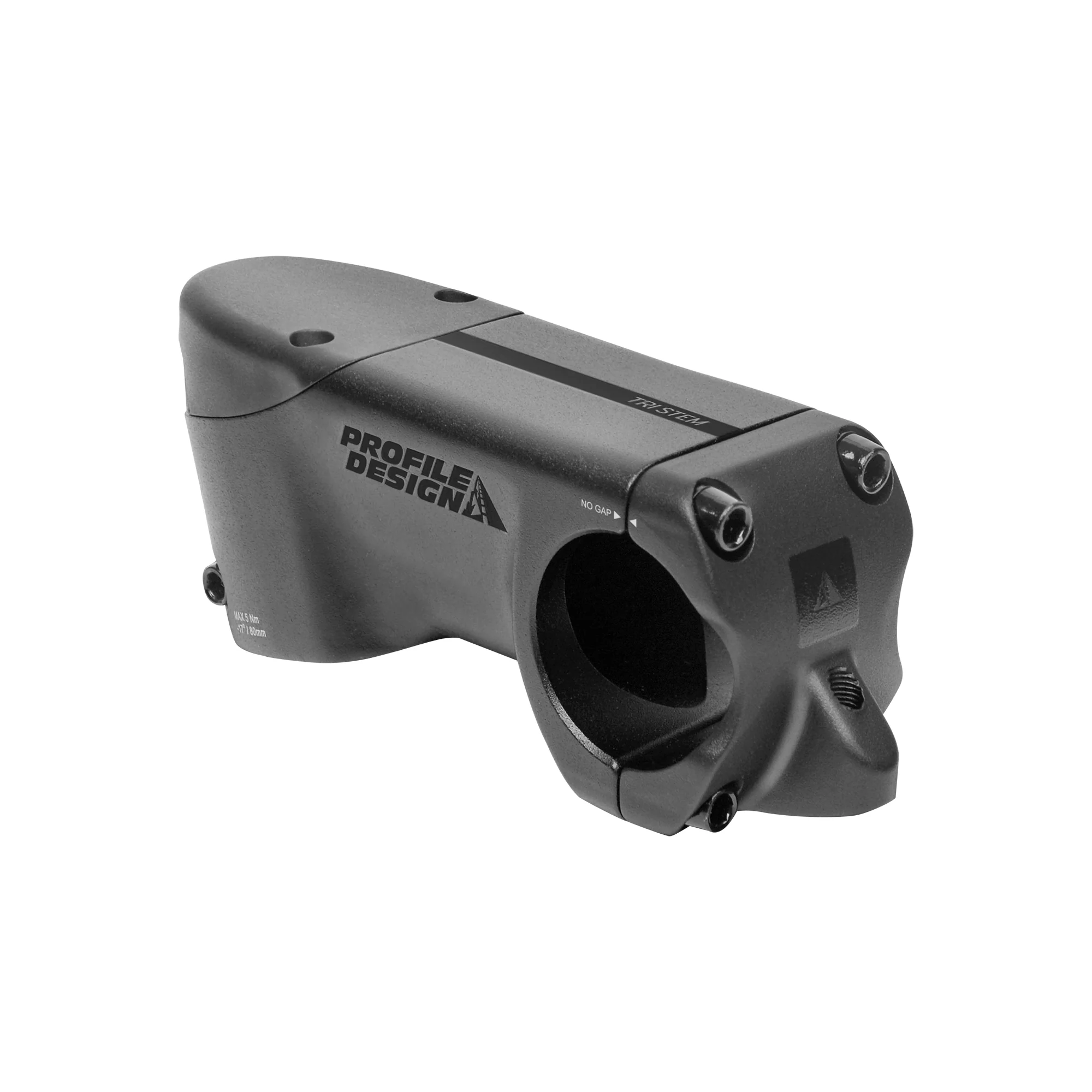

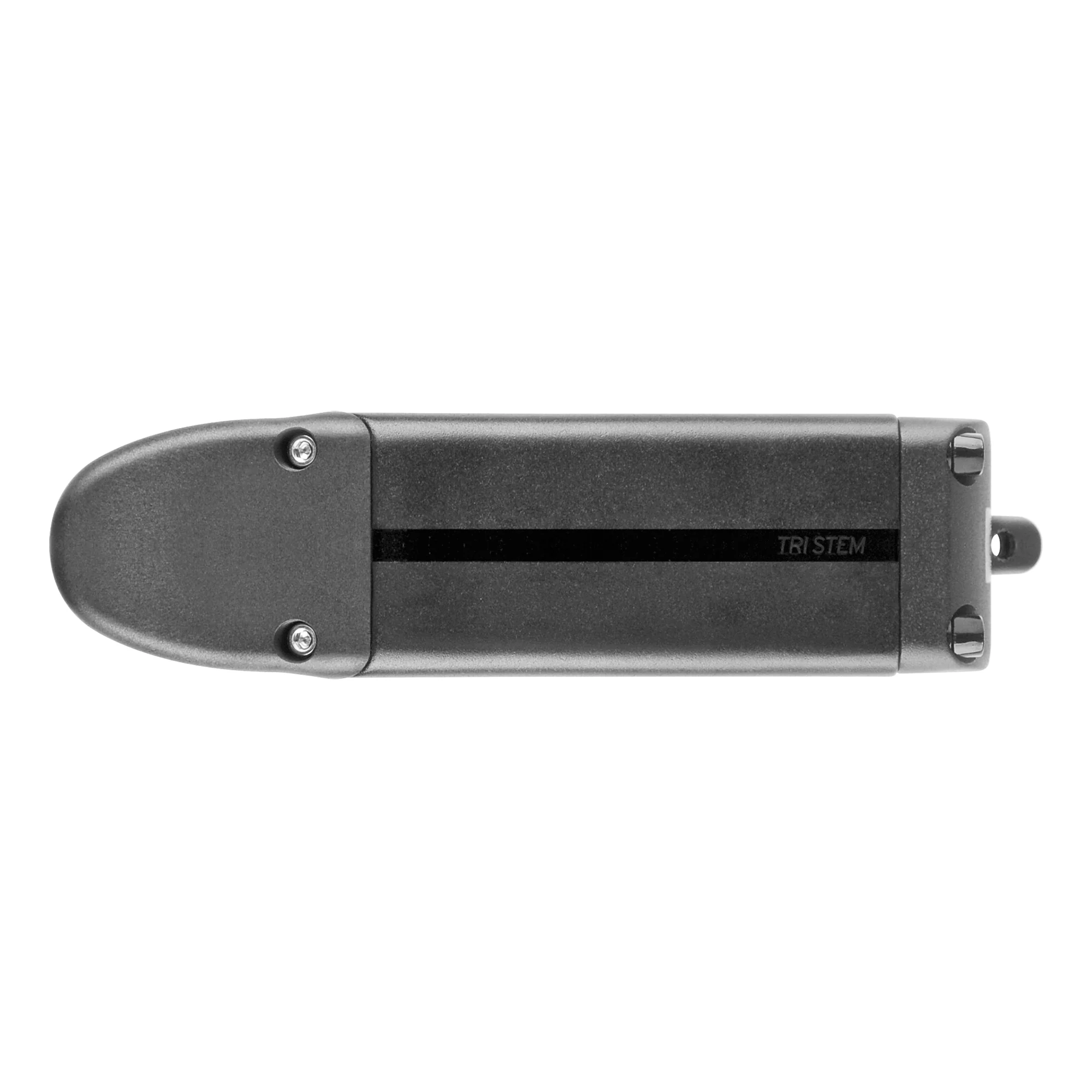

OVERVIEW

The Tri stem offers increased integration for a wider range of bike than ever before.

It is designed to suit different styles of internal cable routing and to accommodate compatible hydration systems - enabling a clean, no fuss front end set up.

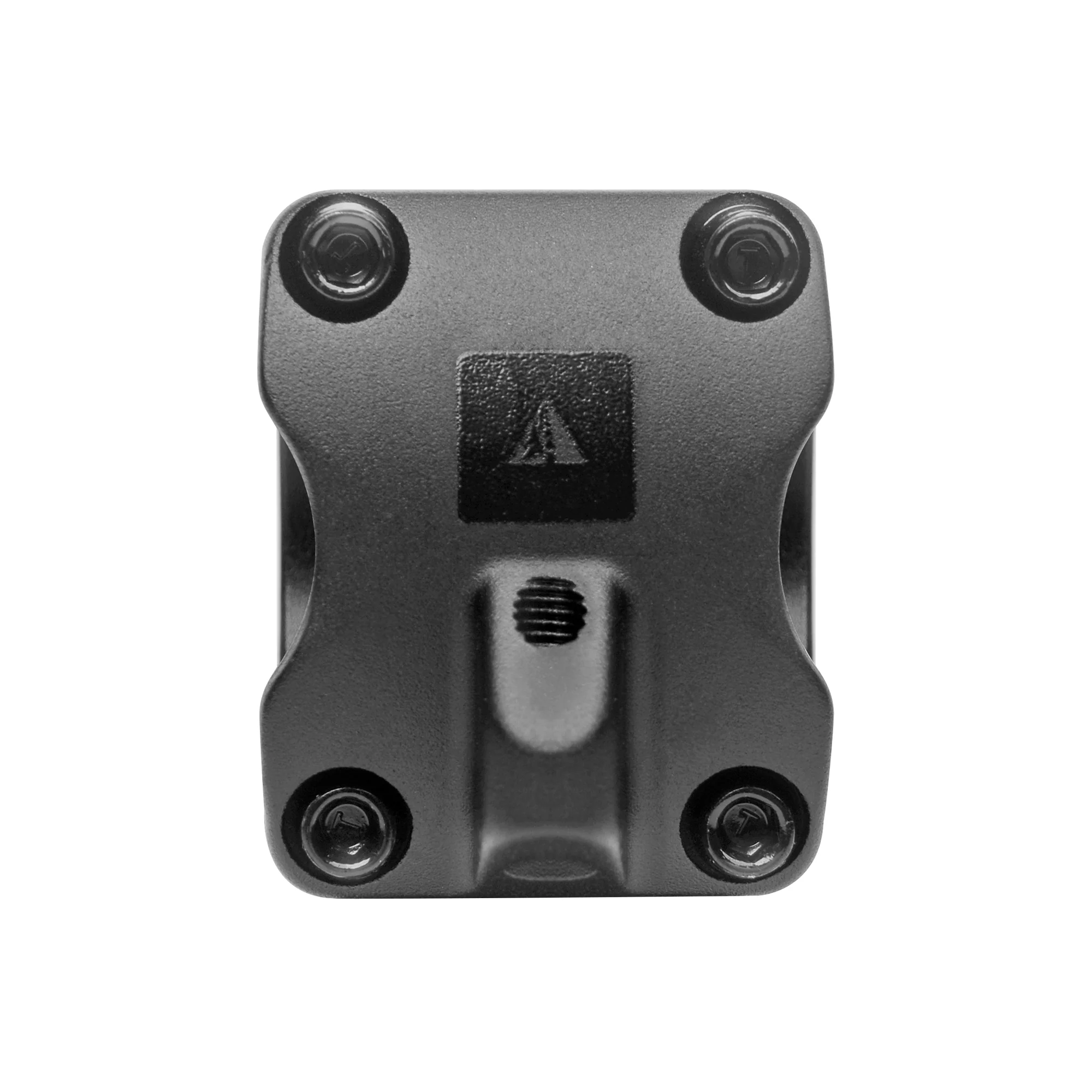

The Tri Stem also features the HSF faceplate for easy mounting of our comptable hydration systems.

Key Features

• Routing for Top Tube or Headset cable entry.
• HSF faceplate compatible for hydration mounting.
• matched spacers- check with Token

• 31.8mm bar clamp to work with standard bar.

TECH SPECS

• Weight:  105mm - 255g, 80mm - 225g
• Length: 80 or 105mm
• Material:  3-D Forged 6061-T6 Aluminum
• Clamp Diameter:  31.8mm
• Angle: -17.5 deg
• Steerer Tube Diameter:  1-1/8in (28.6mm)
• Stack Height: 37mm
• Clamp Width: 40mm
• Finish: Matte Black with Black Accents

Accessory Options

The Tri Stem is ideally paired with a HSF/Aeria bottle.

• HSF/Aeria Bottle

MANUAL

Tri Stem Installation Instructions

Cable Routing Map
